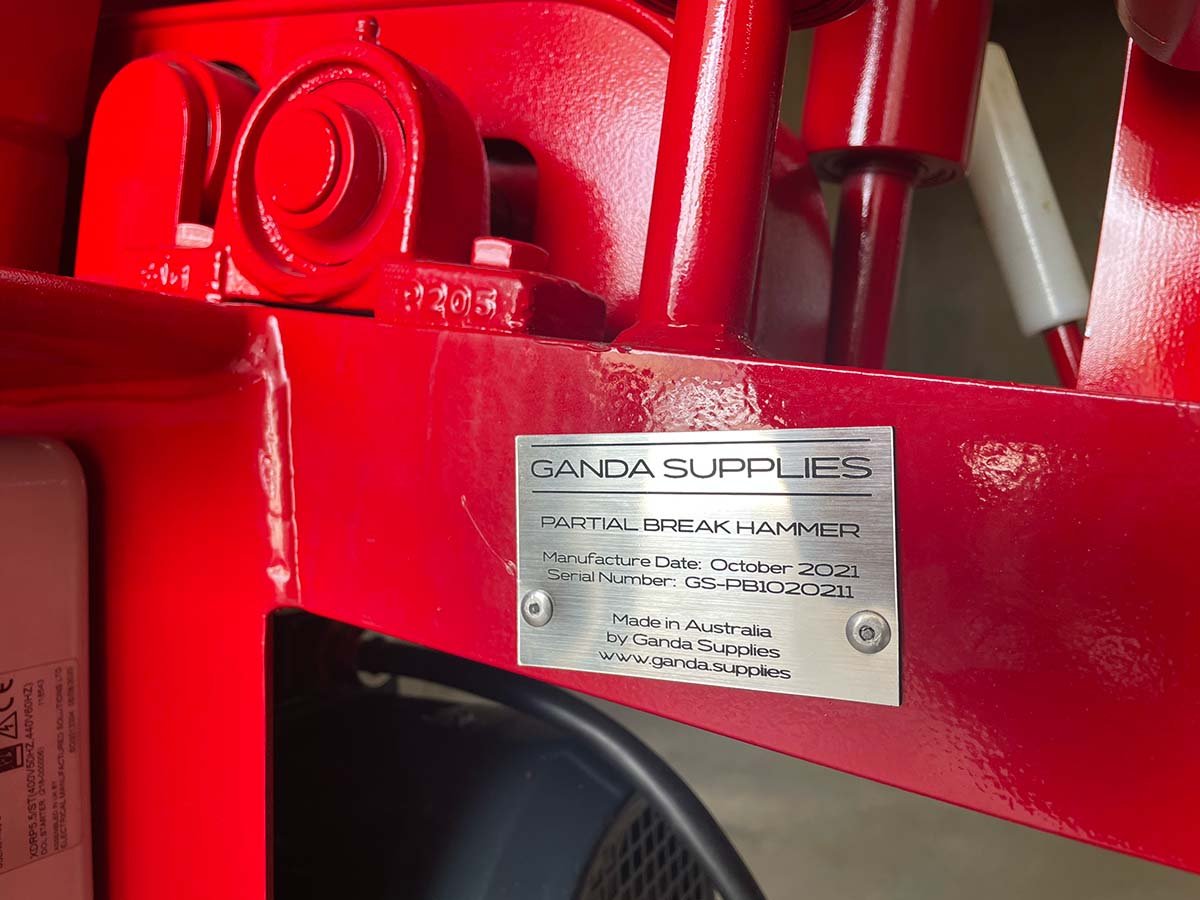

Partial Break Hammer

PRINCIPLES OF OPERATION
The Partial Break Hammer physically manipulates the cable while tests are conducted with the Partial Break Testing unit. The cable is drawn through the unit (in the same way as it is with the cable handler) with an additional mechanical agitation. The unit shakes the cable and enables the test unit to detect faults that would otherwise be undetected when the cable is laid flat and immobile.

SPECIFICATIONS

  • 1.5KW 415V Motor coupled to a flange mounted gearbox with a 10:1 reduction

  • Rotating hammer is driven by 0.75kW 415V motor and Vee belt drive

  • Adjustable pressure rollers

  • Foward/Reverse/stop control

  • 10m flexible rubber power lead with 20Amp four pin plug

  • Tool shelf

  • Dimensions: Unit 500 x 305 x 457 mm

  • Weight: 65kg

  • Emergency Quick Stop Button

To be used in conjunction with:

Partial Break Detector
Adret PB201

Partial Break detectors are used to detect partial breaks in mining trailing cable conductors. More
